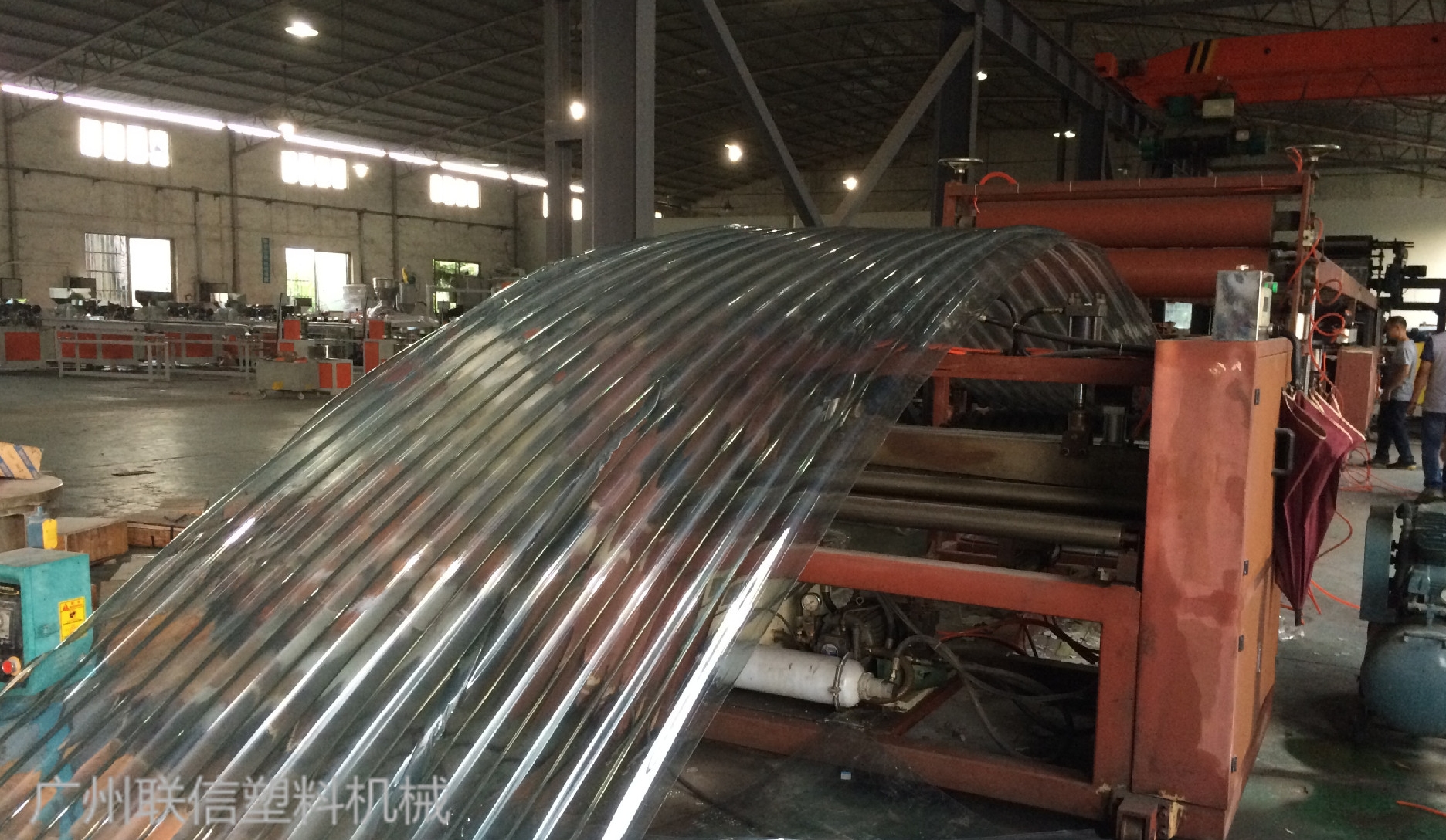

PC/ABS Plastic Wave Tile Extruision Line

Item No.: SHY-120 PC/ABS Plastic Wave Tile Extruis
FOB Price:
US $180,000 - 210,000 / Set
Get Latest Price
Min.Order Quantity: 1 Set
Supply Ability:
8 Set/Sets per Month
Port:
Canton
Payment Terms:
T/T,Western Union,
Description
Applied material: PVC PC PP PE
Capacity: 200-400kg/h

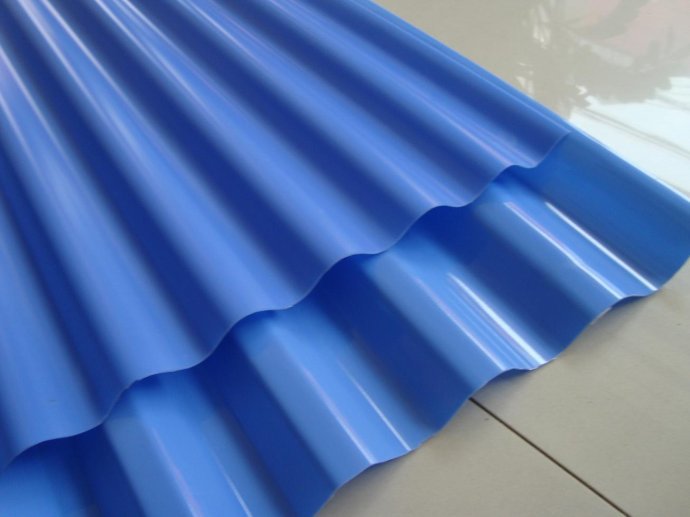

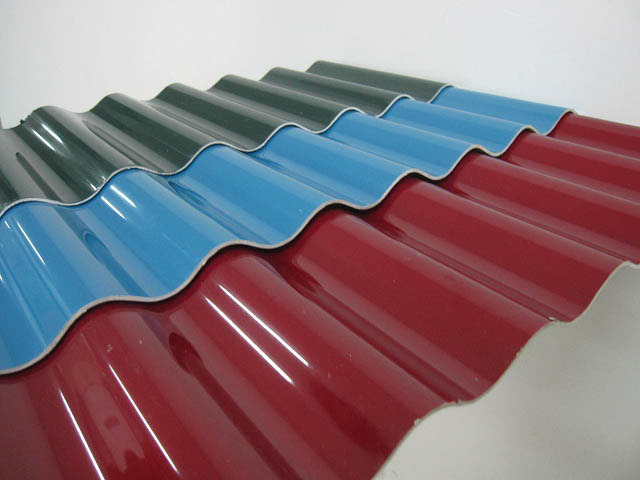

Usage: produce all kinds of plastic wave tales

Line equipment:
(1)Main extruder: single screw ;according to customer’s different requirement it can be especially for PP .PVC ,PP, PC ,PC,etc.
(2)Hydraulic filter changer :with convenient highly efficiency  double station.

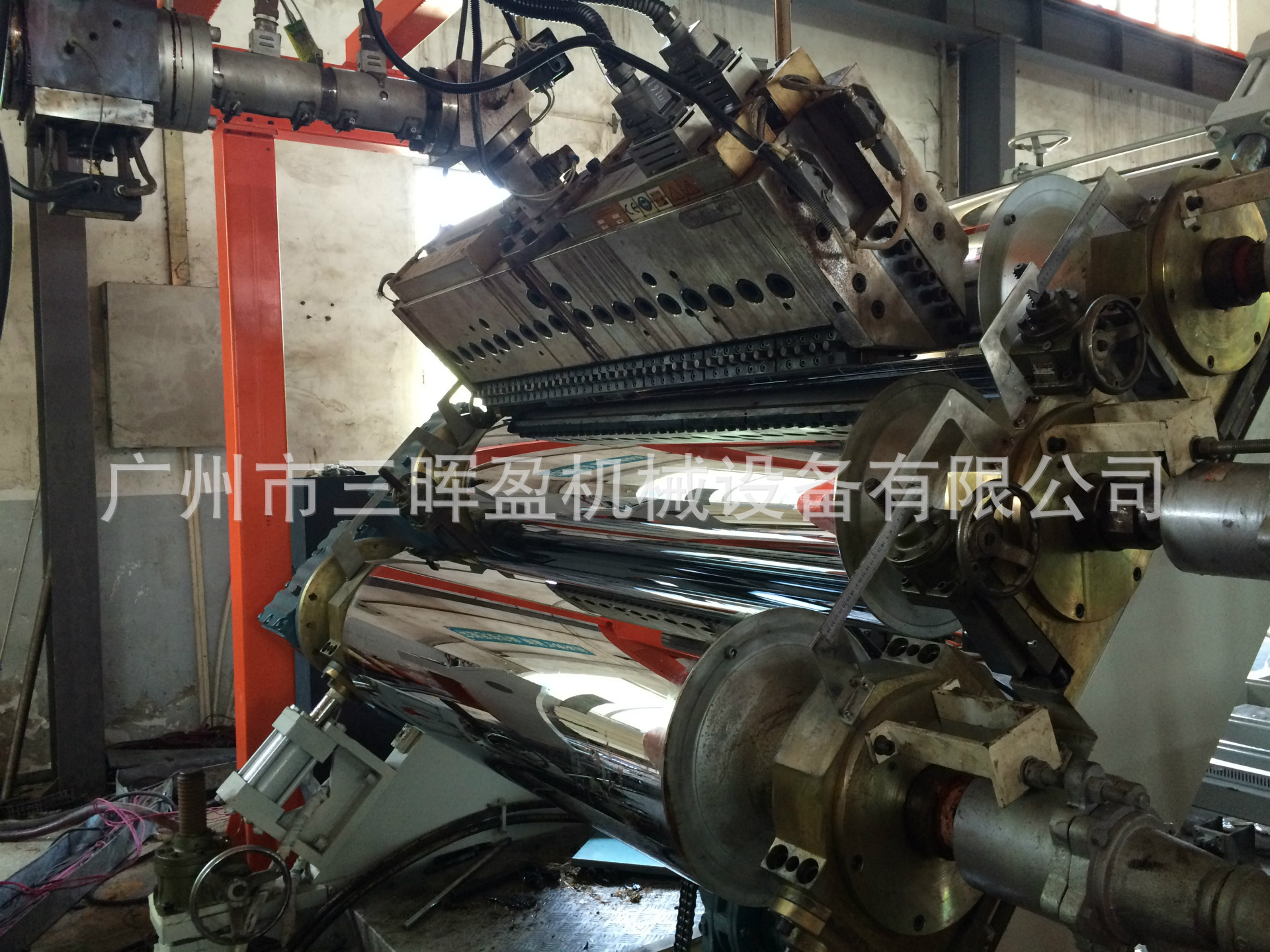

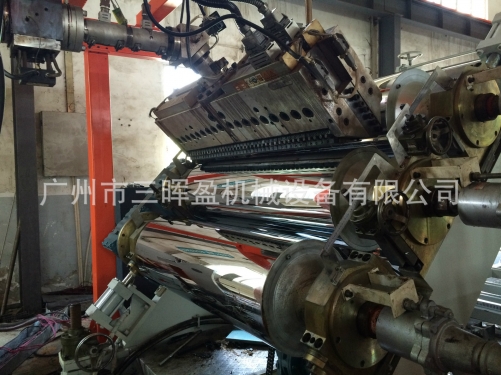

(3)Three-roller calender :with independent driving system that intervals between rollers can be adjusted easily.
(4)Heating device: with heating treatment before second forming , to make sure the wave shape.

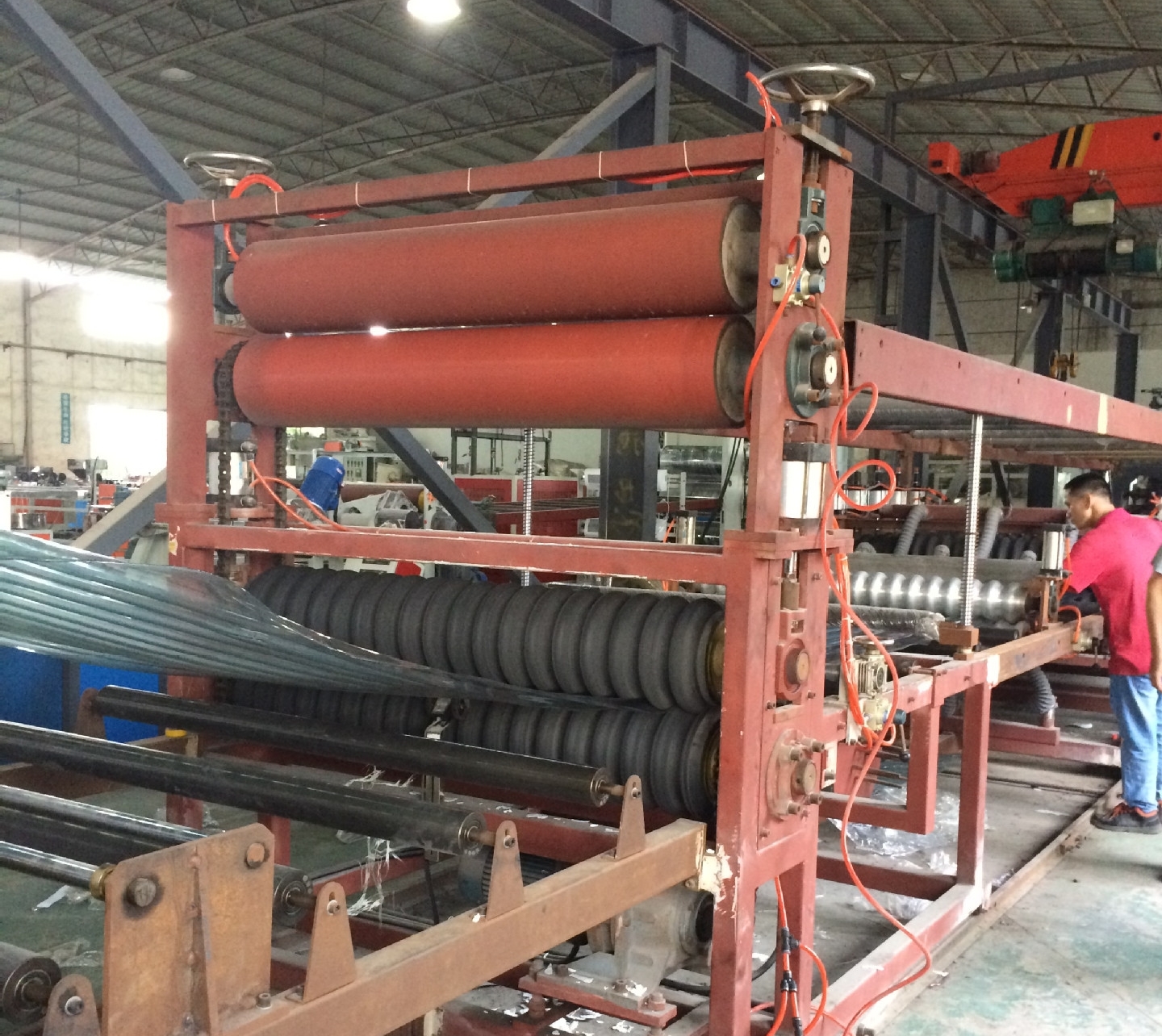

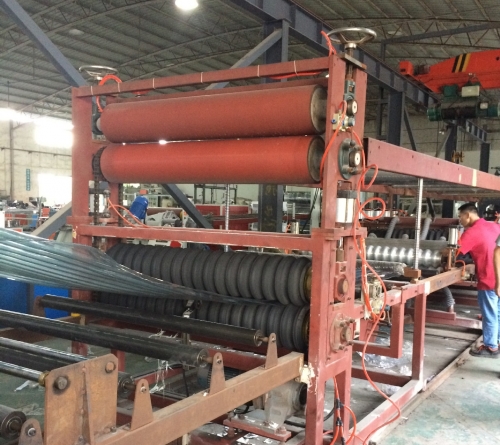

(5)Forming device: shaping in a high speed with precise size.
(6)Haul-off device:two roller  hauling device with variable speed control.
(7)Cutting device: perfect blade to cut the output.
(8)Control system:multiple choice such as PLC control.
